1 Introduction

The main model-fitting function in the PlackettLuce package, PlackettLuce, directly models the worth of items with a separate parameter estimate for each item (see Introduction to PlackettLuce). This vignette introduces a new function, pladmm, that models the log-worth of items by a linear function of item covariates. This functionality is under development and provided for experimental use - the user interface is likely to change in upcoming versions of PlackettLuce.

pladmm supports partial rankings, but otherwise has limited functionality compared to PlackettLuce. In particular, ties, pseudo-rankings, prior information on log-worths, and ranker adherence parameters are not supported.

2 Plackett-Luce model with item covariates

The standard Plackett-Luce model specifies the probability of a ranking of \(J\) items, \({i_1 \succ \ldots \succ i_J}\), is given by

\[\prod_{j=1}^J \frac{\alpha_{i_j}}{\sum_{i \in A_j} \alpha_i}\]

where \(\alpha_{i_j}\) represents the worth of item \(i_j\) and \(A_j\) is the set of alternatives \(\{i_j, i_{j + 1}, \ldots, i_J\}\) from which item \(i_j\) is chosen.

pladmm models the log-worth as a linear function of item covariates:

\[\log \alpha_i = \beta_0 + \beta_1 x_{i1} + \ldots + \beta_p x_{ip}\]

where \(\beta_0\) is fixed by the constraint that \(\sum_i \alpha_i = 1\). The parameters are estimated using an Alternating Directions Method of Multipliers (ADMM) algorithm proposed by (Yildiz et al. 2020), hence the name pladmm.

ADMM alternates between estimating the worths \(\alpha_i\) and the linear coefficients \(\beta_k\), encapsulating them in a quadratic penalty on the likelihood:

\[L(\boldsymbol{\beta}, \boldsymbol{\alpha}, \boldsymbol{u}) = \mathcal{L}(\mathcal{D}|\boldsymbol{\alpha}) + \frac{\rho}{2}||\boldsymbol{X}\boldsymbol{\beta} - \log \boldsymbol{\alpha} + \boldsymbol{u}||^2_2 - \frac{\rho}{2}||\boldsymbol{u}||^2_2\] where \(\boldsymbol{u}\) is a dual variable that imposes the equality constraints (so that \(\log \boldsymbol{\alpha}\) converges to \(\boldsymbol{X}\boldsymbol{\beta}\)).

3 Salad Data

We shall illustrate the use of pladmm with a classic data set presented by (Critchlow and Fligner 1991) that is available as the salad data set in the prefmod package. The data are 32 full rankings of 4 salad dressings (A, B, C, D) by tartness, with 1 being the least tart and 4 being the most tart, according to the ranker.

library(prefmod)
head(salad, 4)
##   A B C D
## 1 1 2 3 4
## 2 1 2 3 4
## 3 2 1 3 4
## 4 2 1 4 3

The salad dressings were made with known quantities of acetic acid and gluconic acid, as specified in the following data frame:

features <- data.frame(salad = LETTERS[1:4],
                       acetic = c(0.5, 0.5, 1, 0),
                       gluconic = c(0, 10, 0, 10))

3.1 Standard Plackett-Luce model

We begin by using pladmm to fit a standard Plackett-Luce model, with a separate parameter for each salad dressing. The first three arguments are the rankings (a matrix or rankings object), a formula specifying the model for the log-worth (must include an intercept) and a data frame of item features containing variables in the model formula. rho is the penalty parameter determining the strength of penalty on the log-likelihood. As a rule of thumb, rho should be ~10% of the fitted log-likelihood.

library(PlackettLuce)
standardPL <- pladmm(salad, ~ salad, data = features, rho = 8)
summary(standardPL)
## Call: pladmm(rankings = salad, formula = ~salad, data = features, rho = 8)
##
## Coefficients:
##             Estimate Std. Error z value Pr(>|z|)
## (Intercept)  -3.1740         NA      NA       NA
## saladB        2.7305     0.4481   6.093 1.11e-09 ***
## saladC        1.5621     0.3965   3.939 8.17e-05 ***
## saladD        1.0275     0.3771   2.725  0.00644 **
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual deviance:  152.83 on 189 degrees of freedom
## AIC:  158.83
## Number of iterations: 7

In this case, the intercept represents the log-worth of salad dressing A, which is fixed by the constraint that the worths sum to 1.

sum(exp(standardPL$x %*% coef(standardPL)))
## [1] 1

The remaining coefficients are the difference in log-worth between each salad dressing and salad dressing A. We can compare this to the results from PlackettLuce, which sets the log-worth of salad dressing A to zero:

standardPL_PlackettLuce <- PlackettLuce(salad, npseudo = 0)
summary(standardPL_PlackettLuce)
## Call: PlackettLuce(rankings = salad, npseudo = 0)
##
## Coefficients:
##   Estimate Std. Error z value Pr(>|z|)
## A   0.0000         NA      NA       NA
## B   2.7299     0.4481   6.093 1.11e-09 ***
## C   1.5615     0.3965   3.939 8.20e-05 ***
## D   1.0268     0.3771   2.723  0.00646 **
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual deviance:  152.83 on 189 degrees of freedom
## AIC:  158.83
## Number of iterations: 6

The differences in log-worth are the same to ~3 decimal places. We can improve the accuracy of pladmm by reducing rtol (by default 1e-4):

standardPL <- pladmm(salad, ~ salad, data = features, rho = 8, rtol = 1e-6)
summary(standardPL)
## Call: pladmm(rankings = salad, formula = ~salad, data = features, rho = 8,
##     rtol = 1e-06)
##
## Coefficients:
##             Estimate Std. Error z value Pr(>|z|)
## (Intercept)  -3.1735         NA      NA       NA
## saladB        2.7299     0.4481   6.093 1.11e-09 ***
## saladC        1.5615     0.3965   3.939 8.20e-05 ***
## saladD        1.0268     0.3771   2.723  0.00646 **
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual deviance:  152.83 on 189 degrees of freedom
## AIC:  158.83
## Number of iterations: 17

The itempar function can be used to obtain the worth estimates, e.g.

itempar(standardPL)
## Item response item parameters (PLADMM):
##       A       B       C       D
## 0.04186 0.64176 0.19950 0.11688

3.2 Plackett-Luce model with item covariates

To model the log-worth by item covariates, we simply update the model formula:

regressionPL <- pladmm(salad, ~ acetic + gluconic, data = features, rho = 8)
summary(regressionPL)
## Call: pladmm(rankings = salad, formula = ~acetic + gluconic, data = features,
##     rho = 8)
##
## Coefficients:
##             Estimate Std. Error z value Pr(>|z|)
## (Intercept) -4.84097         NA      NA       NA
## acetic       3.27431    0.57650   5.680 1.35e-08 ***
## gluconic     0.27392    0.04505   6.081 1.20e-09 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual deviance:  152.9 on 190 degrees of freedom
## AIC:  156.9
## Number of iterations: 14

The model uses one less degree of freedom, but there is only a slight increase in the deviance, that is not significant:

anova(standardPL, regressionPL)
## Analysis of Deviance Table
##
## Model 1: ~salad
## Model 2: ~acetic + gluconic
##   Resid. Df Resid. Dev Df Deviance Pr(>Chi)
## 1       189     152.83
## 2       190     152.91  1 0.074411    0.785

So it is sufficient to model the log-worth by the concentration of acetic and gluconic acids.

An advantage of modelling log-worth by covariates is that we can predict the log-worth for new items. For example, suppose we have salad dressings with the following features:

features2 <- data.frame(salad = LETTERS[5:6],
                        acetic = c(0.5, 0),
                        gluconic = c(5, 5))

the predicted log-worth is given by

predict(regressionPL, features2)
##         1         2
## -1.834198 -3.471352

Note that the names in features2$salad are unused as salad was not a variable in the model. The predicted log-worths have the same location as the original fitted values

fitted(regressionPL)
##          A          B          C          D
## -3.2038115 -0.4645852 -1.5666574 -2.1017393

i.e. they are contrasts with the log-worth of salad dressing A. If we want to express the predictions as a new set of constrained item parameters, we can specify type = "itempar" (vs the default type = "lp" for linear predictor). The parameterization can then be specified by passing arguments on to itempar(), e.g. the following will compute the predicted worths constrained to sum to 1:

predict(regressionPL, features2, type = "itempar", log  = FALSE, ref = NULL)
##         1         2
## 0.8371473 0.1628527

Standard errors can optionally be returned, by specifying se.fit = TRUE

predict(regressionPL, features2, type = "itempar", log  = FALSE, ref = NULL,
        se.fit = TRUE)
## $fit
##         1         2
## 0.8371473 0.1628527
##
## $se.fit
##          1          2
## 0.03929727 0.03929727

3.3 Plackett-Luce tree with item covariates

The Plackett-Luce model with item covariates can also be used in model-based partitioning. To illustrate, we shall simulate some covariate data for the judges than ranked the four salads, based on their ranking of salad A

set.seed(1)
judge_features <- data.frame(varC = rpois(nrow(salad), lambda = salad$C^2))

This simulates the scenario where some characteristic of the judge affects how they rank salad A, so we expect the item worth to depend on this variable.

Now we group the rankings by judge in preparation to fit a Plackett-Luce tree:

grouped_salad <- group(as.rankings(salad), 1:nrow(salad))

We specify the Plackett-Luce tree to partition the grouped rankings by any of the judge features (grouped_salad ~ .), with the log-worth of the salads modelled by a linear function of the acetic and gluconic acid concentrations (~acetic + gluconic). The corresponding variables are found in data, which should be a list of two data frames, the first containing the group covariates and the second containing the item covariates. We set a minimum group size of 10 and reduce the rho parameter accordingly.

tree <- pltree(grouped_salad ~ .,
               worth = ~acetic + gluconic,
               data = list(judge_features, features),
               rho = 2, minsize = 10)
plot(tree, ylines = 2)

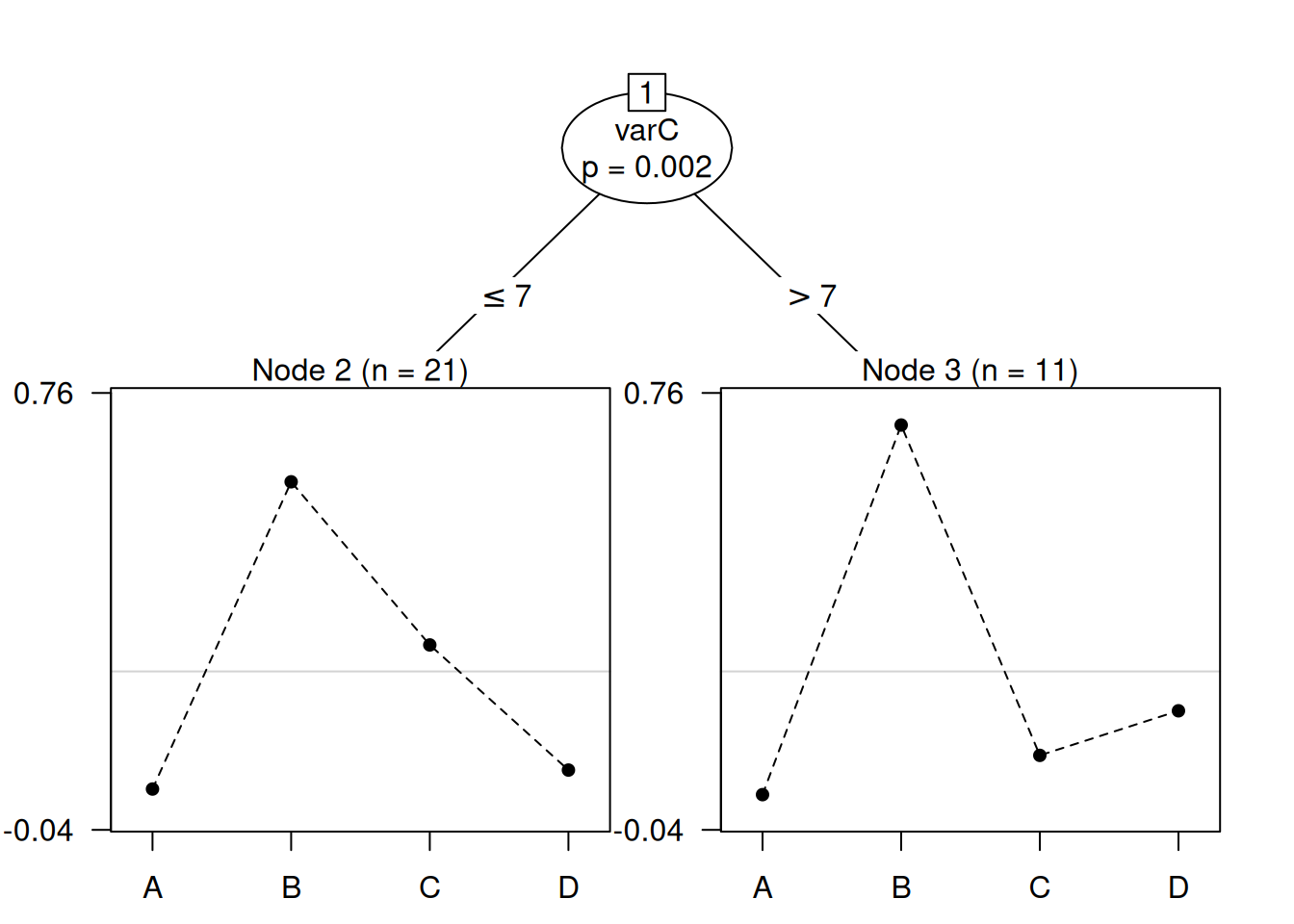

The result is a tree with two nodes; both groups prefer salad B, but the first group (varC ≤ 7) places salad C in second place, while the second group (varC > 7) prefer salad D. This is as we might expect, since we simulated the judge covariate varC to correlate with the ranking of C, so a higher value of this variable correlates to a lower preference for C. We can see the difference in the coefficients of the item features:

tree
## Plackett-Luce tree
##
## Model formula:
## grouped_salad ~ .
##
## Fitted party:
## [1] root
## |   [2] varC <= 7: n = 21
## |       (Intercept)      acetic    gluconic
## |        -5.5121162   4.3035356   0.2845096
## |   [3] varC > 7: n = 11
## |       (Intercept)      acetic    gluconic
## |        -5.0821780   2.7423782   0.3355964
##
## Number of inner nodes:    1
## Number of terminal nodes: 2
## Number of parameters per node: 3
## Objective function (negative log-likelihood): 71.40774

From the first group to the second group, the coefficient for acetic acid concentration reduces from 4.3 to 2.7. Since the acetic acid concentration for salad C is 1, with 0 gluconic acid, this reduces the worth of salad C in the second group. At the same time, the coefficient for gluconic acid concentration increases 0.28 to 0.34 between the first and second groups. Since the gluconic acid concentration for salad D is 1, with 0 acetic acid, this increases the worth of salad D in the second group.

4 Cautionary notes

The PLADMM algorithm should in theory converge to the maximum likelihood estimates for the parameters. However, the algorithm may not behave well if the rankings are very sparse or if the penalty parameter rho is not set to a suitable value. Currently, pladmm does not provide checks/warnings to assist the user the validate the result. It is recommended that the standard Plackett-Luce model is fitted initially to give a reference of the expected log-likelihood and item parameters - pladmm should give broadly similar results.

pladmm also returns two estimates of the worths. The first set are the direct estimates from the last iteration of ADMM:

regressionPL$pi
##          A          B          C          D
## 0.04061305 0.62842986 0.20872416 0.12223294

The second set are the estimates given by the estimates of \(\boldsymbol{\beta}\) from the last iteration:

regressionPL$tilde_pi
##          A          B          C          D
## 0.04060714 0.62839568 0.20874175 0.12224363

These two sets of estimates should be approximately the same (but being approximately the same does not guarantee the solution is the global optimum).
